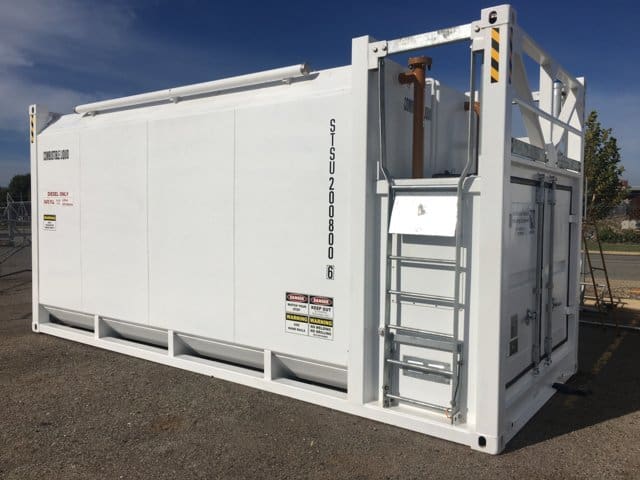

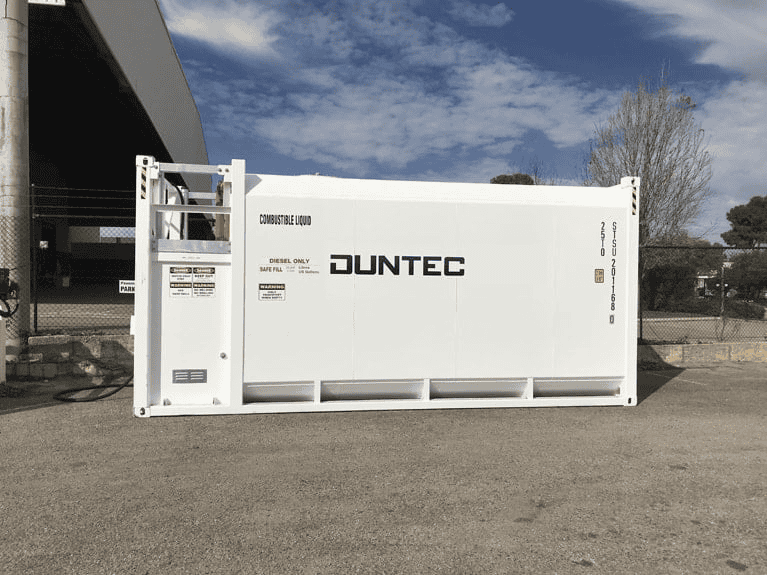

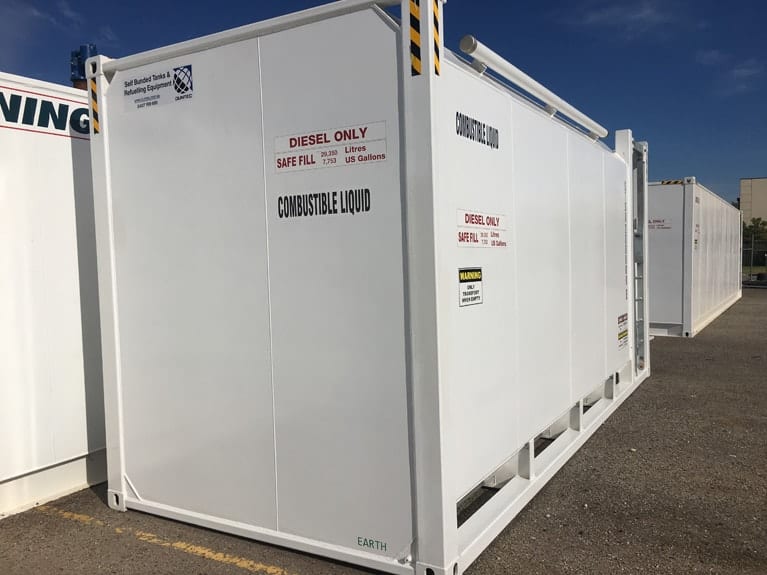

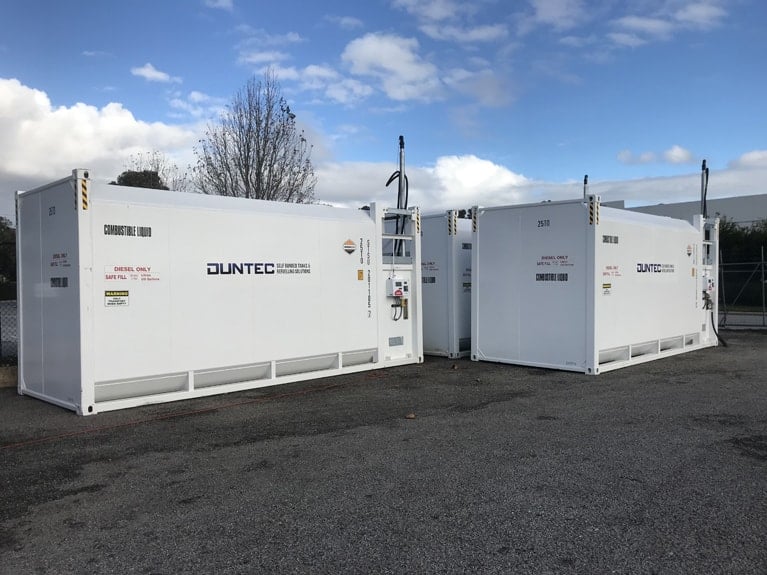

FT Series Self Bunded Fuel Tank Refuelling System
FT-SERIES FEATURES SELF-BUNDED FUEL TANK FEATURES
- Self bunded with internal tank and external bund
- Suction foot valve, overfill protection and overfill alarm
- ISO container lock castings for ease of transport
- 3 x Access manholes with internal ladder for maintenance
- Bunded pump bay with lockable weatherproof doors
- Galvanised access ladder and platform
- Internal ladder for access
- Air breather vents for free venting
- Containment compartment (internal bund) with emergency vent
- Calibrated contents dip stick
- Interstitial space dip stick
- Lockable top sump for access points
- Unit sand blasted to AS2.5
- Underside of the base bitumen coated for protection
- Paint coating to C5-1 harsh environment standard, three coats Hempel paint to 240 micron thickness
- Statutory signage to suit end use location
- Tank manufacture and compliance plates
- Designed To: AS1940
- Built To: AS1692, Cat3
MODEL NUMBERS & DIMENSIONS
| Model Number | Gross Capacity Litres | Standard SFL (1) | Length (mm) | Width (mm) | Height (mm) | Tare (Kg) |
|---|---|---|---|---|---|---|
| FT12 | 11700 | 10530 | 2991 | 2438 | 2896 | 4910 |
| FT20 | 20,000 | 18000 | 2991 | 2438 | 2896 | 4748 |
| FT30 | 30500 | 29570 | 6058 | 2438 | 2896 | 7934 |
| FT38 | 38000 | 34200 | 6058 | 2438 | 2896 | 8037 |
| FT68 | 69000 | 65400 | 12192 | 2438 | 2896 | 14100 |
| FT75 | 74388 | 66950 | 12192 | 2438 | 2896 | 14082 |
| FT80 | 81500 | 73350 | 14630 | 2438 | 2896 | 17100 |
| FT100 | 100000 | 90000 | 14630 | 2438 | 3200 | 18000 |
| FT110 | 120000 | 110000 | 14630 | 2438 | 3635 | 19000 |
